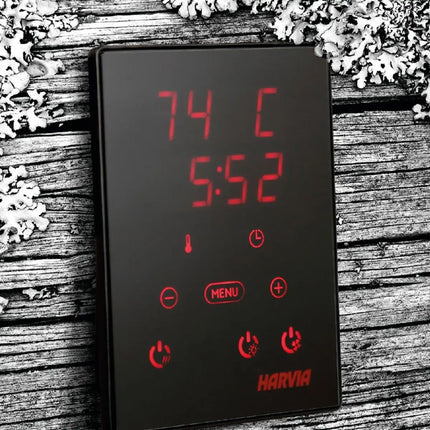

Harvia Xenio CX30C-U3-XW Sauna Control Unit with Wi-Fi Connectivity
The Harvia Xenio CX30C-U3-XW is an advanced sauna control unit that offers a modern, stylish interface for managing your sauna experience. Featuring a sleek touch control panel and Wi-Fi connectivity, this unit provides convenience and flexibility in controlling your sauna settings remotely. Whether you choose to install the control panel in the sauna, shower room, dressing area, or even your living space, the compact design ensures seamless integration into any environment.
With Wi-Fi capability, you can easily monitor and adjust your sauna settings from anywhere, ensuring your sauna is always ready at the perfect temperature and humidity when you need it. The Harvia app (available for iOS and Android) allows you to control your sauna from your phone, and it also integrates with smart home systems like Google Home or Amazon Alexa for voice-activated adjustments.
Key Features:
-
Compatible with Harvia Virta Combi Series Sauna Heaters: Designed specifically for the Virta Combi Series, this model supports up to 10 kW maximum output and is perfect for three-phase installations (208V).
-
Independent Heater and Steamer Control: Offers separate control for both the sauna heater and steamer, ensuring full customization of your sauna environment.
-
Temperature and Humidity Regulation: Control both temperature (104–194°F) and humidity (20–95%), allowing you to create the ideal sauna experience.
-
Wi-Fi Connectivity: Monitor and adjust your sauna settings remotely using the Harvia app, or integrate with Google Home or Amazon Alexa for voice control.
-
Timer and Lighting Control: Adjust the sauna's timer delay settings, lighting, and fans for a fully customizable session.
-
Flexible Installation: Can be installed wall-mounted or surface-embedded to suit your space and preferences.
-
Safety Features: Includes overheating protection and a child lock function for added safety during operation.
Product Includes:
Specifications:
-
Model: CX30C-U3-XW
-
Power Supply Voltage: 208V (Three-Phase)
-
Maximum Output: 10 kW
-
Temperature Adjustment Range: 104–194°F (40–90°C)
-
Pre-setting Time Adjustment Range: 0–12 Hours
-
Control Panel Dimensions (W x D x H): 3.4” x 1.0” x 4.4” (85 mm x 24 mm x 110 mm)
-
Power Unit Dimensions (W x D x H): 14.3” x 2.9” x 10.5” (364 mm x 73 mm x 267 mm)
Additional Information:
-
Heater Compatibility: Compatible with Harvia Virta Combi Series sauna heaters. This model is suitable for three-phase installations only and is not compatible with single-phase heaters.
-
Installation: For optimal performance and safety, installation should be performed by a licensed electrician.
-
Warranty: Includes a 1-year full warranty covering material or workmanship defects, and a 5-year service warranty providing access to authorized service centers for repairs and maintenance.
